Integrated shelf illumination is proven to increase retail sales by up to 15% by eliminating shadows, elevating perceived product value, and drawing customer eyes directly to high-margin merchandise. CAEM’s upgraded ARDENTE System offers a complete, plug-and-play kit containing every component needed—from a pre-moulded 3-pin plug and compliant Wagobox enclosure down to magnetic vertical power tracks and ultra-slim aluminium LED sticks. It retrofits onto any existing metal shelving with zero tools or electrical expertise required.
The Power of Shelf Illumination: Why Light Means Sales
In retail, a shadow on a shelf is a lost sale. Standard overhead lighting rarely reaches middle and lower display tiers, leaving key merchandise hidden in "shadow pockets".
The original ARDENTE System set a new benchmark for in-store merchandising:
- Proven Sales Uplift: Stores retrofitting their shelving with ARDENTE experience an average sales increase of up to +15% on illuminated categories.
- Rapid ROI: By turning ignored shelf space into vibrant, high-conversion display zones, the system pays for itself in short order.
- Universal Retrofit Compatibility: Designed to snap effortlessly onto existing metal shelving, it eliminates the need for expensive store refits.
Now, CAEM has taken that winning formula and made it even better.
What’s New? The Complete "Box-to-Shelf" ARDENTE Kit
Retailers told us they wanted simplicity: no sourcing separate transformers, no searching for safe connectors, and no tedious wiring headaches.
The revamped ARDENTE range arrives as a complete, ready-to-install system. Everything you need to light up your merchandise is inside one single box:

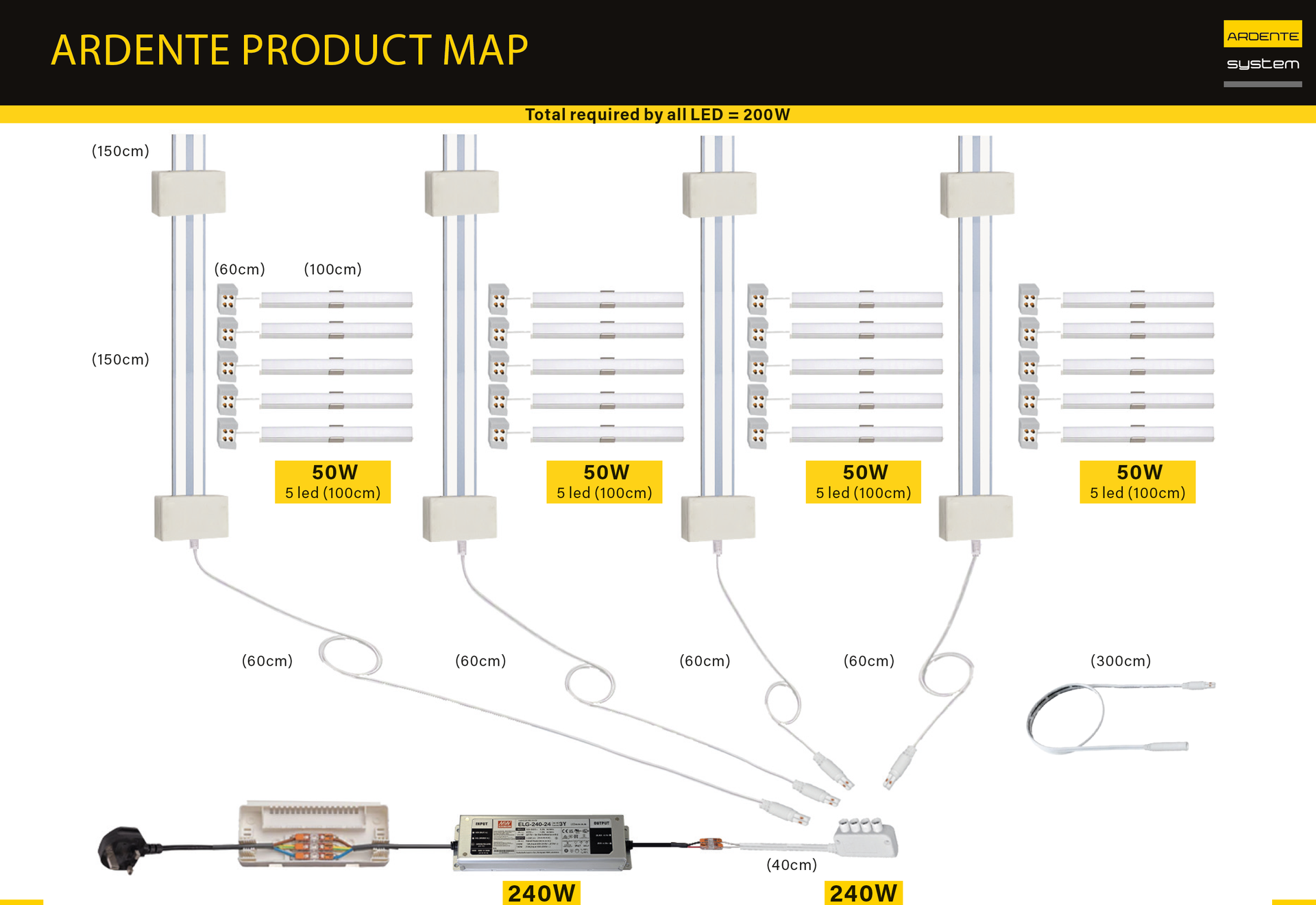

[3-Pin Moulded Plug] ➔ [Wago Inline Connectors & Wagobox] ➔ [240W Transformer] ➔ [4-Way Splitter] ➔ [Magnetic PowerTracks] ➔ [Ultra-Slim LED Sticks]
1. Mains-Ready Power Delivery
- 3-Pin Moulded Plug (300cm): Plugs straight into standard wall sockets.
- Safe, Tool-Free AC Wiring: Includes Wago inline connectors and a compliant, click-close Wagobox enclosure to lock all AC connections away safely and cleanly.
- 240W Constant-Voltage Transformer: Powers robust, long runs of vibrant 4000K white light across multiple bays.
2. Unique Power Distribution Technology
- Central 4-Way Splitter: Plugs into the transformer to distribute power across up to 4 adjacent shelving bays from a single mains point.
- Magnetic Vertical PowerTracks (1500mm): Mount magnetically to your metal back panels to carry low-voltage power vertically up the bay—no visible messy cables, no drilling, and cuttable to custom heights.
- Magnetic Power Take-Off Cables (600mm): Snap magnetically onto the vertical track at any height to deliver power directly under each shelf.
3. Ultra-Slim Aluminium LED Sticks
- Integrated Magnetic Mounting: Ultra-slim aluminium LED sticks rest flat against the underside of metal shelves via built-in magnets.
- Flexible Sizing: Available in 66cm (7W), 80cm (8W), 100cm (10W), and 125cm (12W) lengths to match standard retail shelf profiles.
- Integrated Cable Management: Built-in cable magnets keep excess wire tucked flat against the shelf for a clean, professional finish.
System Architecture: Standard Setup vs. ARDENTE Complete Kit
| Component / Feature | Standard/Legacy Shelf Lighting | Revamped ARDENTE Complete Kit |
| Out-of-Box Readiness | Not included | 100% Complete Plug-and-Play Kit
|
| Mains Connection | Not included | 3-Pin Moulded Plug + Wagobox Enclosure
|
| Power Distribution | 1 Transformer feeds up to 4 Bays via 4-Way Splitter | 1 Transformer feeds up to 4 Bays via 4-Way Splitter
|
| Vertical Cabling | Ultra-Slim Magnetic PowerTrack | Ultra-Slim Magnetic PowerTrack
|
| Shelf Mounting | Magnets detatched from LED tubes | Instant Tool-Free Integrated Magnets
|
| Light Quality | Tubes can rotate and point not in the right direction | Vibrant 4000K Merchandise-Enhancing Light
|
3 Easy Steps to Light Up Your Store
- Plug In & Enclose: Connect the 3-pin plug cable to the 240W transformer using the Wago inline connectors and click them shut inside the safe Wagobox.
- Mount the Magnetic PowerTracks: Snap the magnetic vertical PowerTracks onto the back panels of up to 4 adjacent shelving bays and plug them into the 4-way splitter.
- Snap on the LED Sticks: Rest the ultra-slim LED sticks beneath each shelf, attach the magnetic take-off cables to the track, and turn on the power.
Boosting sales and transforming your store atmosphere has literally never been this effortless.
Frequently Asked Questions
Q: Do I need an electrician to install the revamped ARDENTE lighting system?
A: No. The revamped ARDENTE range is engineered as a low-voltage, plug-and-play complete kit. With a standard 3-pin moulded plug, push-in Wago connectors, and magnetic mountings, store staff can install or reconfigure the system safely with zero special tools or electrical qualifications.
Q: Can the ARDENTE system be retrofitted to non-CAEM shelving?
A: Yes. The magnetic PowerTracks and magnetic LED sticks adhere securely to any standard metal retail shelving system, making it an ideal universal upgrade for existing shopfittings.
Q: How many shelves can one ARDENTE transformer power?
A: Each 240W transformer can power up to 4 shelving bays (facings) via the included 4-way splitter. For optimal performance, total connected wattage should be kept under 200W per transformer (e.g., up to twenty 100cm/10W LED light sticks across 4 bays)
